Product Description

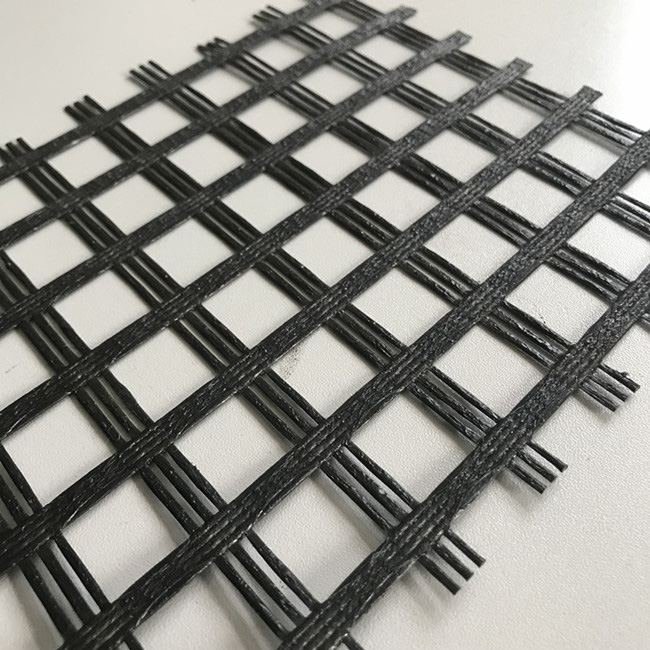

Description of Asphalt Reinforcement Fiberglass Geogrid
Asphalt Reinforcement Fiberglass Geogrid is made of high quality fiberglass reinforced alkali glass fiber yarn, use of advanced warp woven into the substrate,using warp directional structure,make full use of fabric yarn strength,improve its mechanical properties.
Fiberglass geogrid is a revolutionary geosynthetic material that is made from high-quality fiberglass filament. It is specifically designed to provide reinforcement and stabilization to soil and other construction materials. This geogrid is characterized by its high tensile strength, durability, and resistance to environmental factors. fiberglass geogrid also exhibits excellent wear resistance, making it suitable for a wide range of applications.fiberglass geogrid also can effectively enhance the strength and durability of the structure.
It is widely use in many fields like the following:
1. Road surface asphalt overlay construction engineering,asphalt layers reinforcement.
2. Converting old cement concrete road into composite road, restraining reflection cracking caused by block shrinkage.
3. Road extension, preventing and controlling the cracking caused by new and old combination and uneven settlement.
4. Treatment of the conjunction between tunnel and bridge or foundation.
Feature of Asphalt Reinforcement Fiberglass Geogrid:
1. Light weight, high tensile strength, high modulus, low elongation and good toughness.
2. Corrosion resistance, no long-term creep, long life span.
3. Good physical and chemical stability and good thermal stability.
4. Resistant to fatigue cracking, high-temperature track and low temperature shrinkage cracking.
Specification of Asphalt Reinforcement Fiberglass Geogrid:
| Property | TGSB30-30 | TGSB50-50 | TGSB60-60 | TGSB80-80 | TGSB100-100 | |
| Ultimate Tensile Strength
(KN/m) |
MD | 30 | 50 | 60 | 80 | 100 |
| CD | 30 | 50 | 60 | 80 | 100 | |
| Elongation (%) | MD | 3 | ||||
| CD | 3 | |||||
| Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | |||||
| Roll Width (m) | 1-6 | |||||
| Roll Length (m) | 50-200 | |||||
| Property | TGSB100-100 | TGSB150-150 | TGSB160-160 | TGSB200-200 | |
| Ultimate Tensile Strength
(KN/m) |
MD | 100 | 150 | 160 | 200 |
| CD | 100 | 150 | 160 | 200 | |
| Elongation (%) | MD | 3 | |||
| CD | 3 | ||||
| Mesh Size (mm) | 12.7*12.7,25.4*25.4,40*40,etc | ||||
| Roll Width (m) | 1-6 | ||||
| Roll Length (m) | 50-200 | ||||

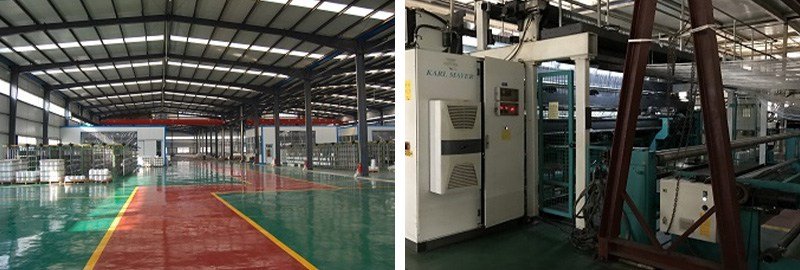

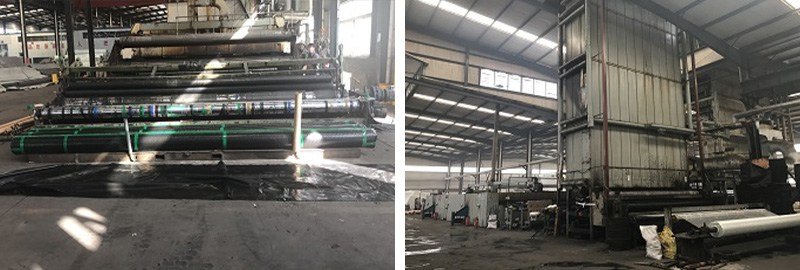

Production of Asphalt Reinforcement Fiberglass Geogrid:

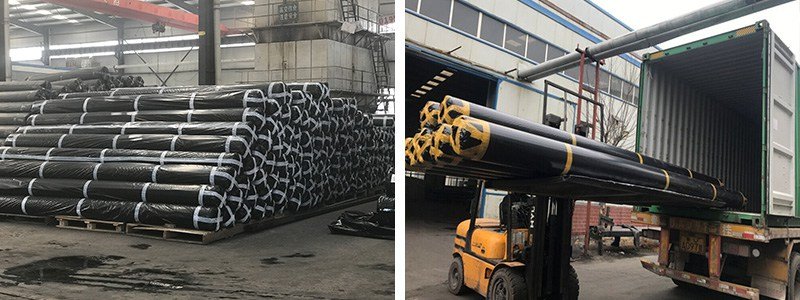

Packing & Shipping of Asphalt Reinforcement Fiberglass Geogrid:
Packaging Details: PE films or according to customer’s requirements
Video of Asphalt Reinforcement Fiberglass Geogrid:
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment, or 100% irrevocable letter
of credit.
Our Company Information
Feicheng Lianyi Engineering Plastic Co., Ltd was founded in 2002.We are experts in manufacturing geotextiles, geogrids, geocomposites, geocells and geomembranes for different projects. Our factory is well-equipped with advanced geosynthetic production machines.
The products we product are Asphalt Reinforcement Fiberglass Geogrid,Polyester Fiber Geogrid,PP BX GEOGRID;HDPE UX GEOGRID,PP UX GEOGRID,PP Laser Welded Geogrid,Asphalt Reinforcement Geocomposite,Biaxial Geogrid With geotextile,Asphalt Reinforcement Fiberglass Geocomposite,PP Biaxial Geogrid Geocomposite,PP Woven Geotextile,PET/PP Needle punched Nonwoven Geotextile,Road Construction HDPE Geocell,hdpe geomembrane sheet,ldpe geomembrane liner,Composite Geomembrane with Nonwoven Geotextile,triplanar geonet,Tri Planar Geonet Composite With Geotextile,three-dimensional vegetation network,etc,
