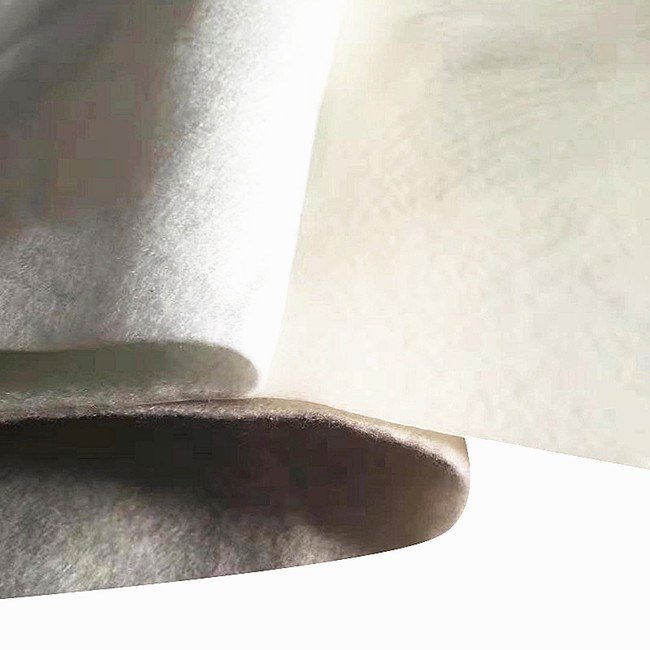

Composite Geomembrane with Nonwoven Geotextile
Composite Geomembrane is thermally laminated with polyethylene one or both sides of Non woven Geotextile or woven geotextile. Description of Composite Geomembrane with Nonwoven Geotextile
Product Description
Details of Composite Geomembrane with Nonwoven Geotextile
1) One layer geotextile and one layer membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
2) Two layers geotextile and one layer membrane ; Weight of base geotextile : 80g/m2-600gm2 ; Thickness of geomembrane :0.2mm-1.5mm .
3) One layer geotextile and two layers membrane ; Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-0.8mm .
4) Multi-layers : Weight of base geotextile : 100g/m2-1000gm2 ; Thickness of geomembrane :0.1mm-1.5mm .
Features of Composite Geomembrane with Nonwoven Geotextile
Flexibility is good , except of a geotextile’s isolation , drainage , reinforcement , protective functiona , it is also impermeable .
Application of Composite Geomembrane with Nonwoven Geotextile
It can be widely used in areas of garbage burying, waste disposal, tail minerals storage and underground construction projects.
Specification of Composite Geomembrane with Nonwoven Geotextile
| Item | Value | ||||||||
| 1 | Standard fracture strength (KN/m) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 |
| 2 | Aspect to the fracture strength(KN/m) | 5 | 7.5 | 10 | 12 | 14 | 16 | 18 | 20 |
| 3 | Elongation corresponding to the standard strength(%) | 3-100 | |||||||
| 4 | CBR Mullenburst(KN) | 1.1 | 1.5 | 1.9 | 2.2 | 2.5 | 2.8 | 3 | 3.2 |
| 5 | Bursting strength(KN) | 0.15 | 0.25 | 0.32 | 0.4 | 0.48 | 0.56 | 0.62 | 0.7 |
| 6 | Peel strength(N/cm) | 6 | |||||||
